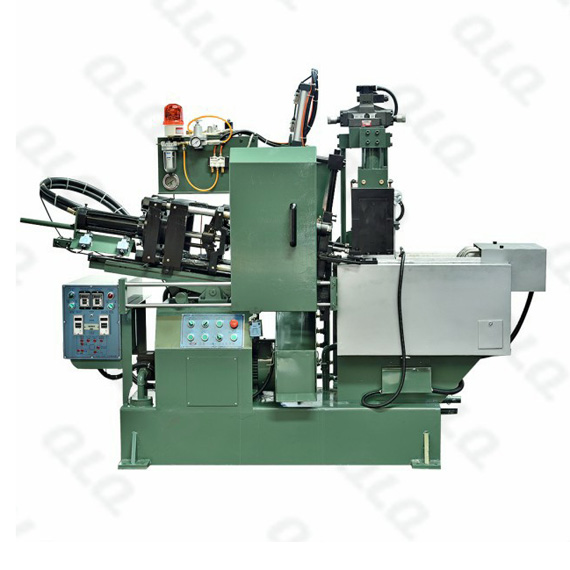

QLQ-HDCM Automatic Hot Chamber Die Casting Machine (15T)
15 tons die-casting machine is with big zinc melting pot which have large capacity of storage.
![[field.text/]](https://www.qlqcompany.com/uploads/allimg/181103/8-1Q103152638.jpg)
Product Name: Automatic Hot Chamber Die Casting Machine (15T)
Model number : QLQ-HDCM
Summary : 15 tons die-casting machine is with big zinc melting pot which have large capacity of storage.
MOQ : 1 set
Lead time : 30 days
Export Packing : plywood packing
PRODUCT DESCRIPTION
15 Tons Hot Chamber Die Casting Machine
| ITEM | UNIT | PARAMETER | ITEM | UNIT | PARAMETER |
| Mould clamping pressure | KN | 15T | Tie bars diameter | Mm | Φ35 |
| Oil pump flow | L | PV2R2-33 | Casting force | KN | 15 |
| Oil drum capacity | L | 180 | Casting stroke | Mm | 80 |
| Rated pressure | Kg/cm2 | 50 | Ejection bar diameter | Mm | Φ35 |
| Energy accumulator | L-number | 10L | Shooting Pole Diameter | Mm | Φ38 |
| Motor power | KW | 5.5HP | Casting capacity (actual) | g | 60-120 |
| Tie bars distance (vertical * horizontal) | Mm | 285x285 | Ejection position | Mm | 0 |
| Tie bars inner distance (for fixing mould) | Mm | 210x210 | Zinc melting pot capacity | KG | 120 |
| Opening stroke | Mm | 135 | Centre distance of front mould screw | Mm | 120 |
| Mould thickness (min-max) | Mm | 120-180 | Centre distance of back mould screw | Mm | 75 |
Remarks:
The machine is with a high capacity and storage
